Item# ME0201013501

Product Description

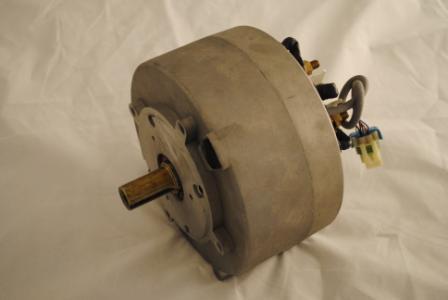

Designed for long life. No brush maintenance. The motor is 90% efficient at voltages between 12 to 48 VDC. Continuous current of 50 amps at 48 VDC. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap. The motor is totally enclosed.

12 turns per phase Line to Line resistance of 0.0048 ohms

ME0201013501 Outline DrawingME0808 Hall Sensor Connector
ME0808 Hall Sensor Connector
This is the mating connector for the Hall Cell Assembly used on the axial air gap brushless motors. Comes with all 5 pins fully assembled and crimped, with a 6 inch lead.
