ME0907

ME0907

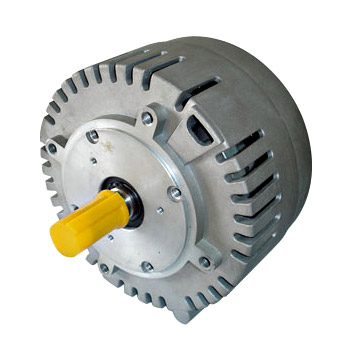

Item# ME0907

Product Description

Designed for long life. No brush maintenance. The motor is 90% efficient at voltages between 24 to 48 VDC. Continuous current of 100 amps at 48 VDC. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap.

1) This is a 8 pole motor (4 pole pairs). 2) The Phase to Phase winding resistance is 0.013 Ohms. 3) The maximum recommended rotor speed is 5000 RPM. 4) Voltages from 0 to 72 VDC input to the control. 5) Torque constant of 0.13 Nm per Amp 6) The Inductance Phase to Phase is 0.10 Milli-Henry. 7) Armature Inertia is 52 Kg Cm Squared. 8) Continuous current of 80 Amps AC. 9) Peak current of 220 Amps AC for 1 minute. 10) Weight of 22 pounds. 11) Peak Stall Torque if 38 Nm. 11) This is an Open Frame, Fan Cooled motor. 12) Has internal temperature sensor.

Note: This is a direct replacement for the Mars Electric LLC ME0201013001 Motor. The only difference is that the ME0907 has an internal temperature sensor.

ME1009 Bi-Directional Fan
ME1009 Bi-Directional Fan
Bi-Directional Fan for brushless motor. The standard fan is set for Counter-Clockwise Rotation of the motor, looking at the output shaft. This fan allows the motor to cool in either direction. Straight, radial blade. Fits a shaft with 13 mm diameter.
$12.00
ME1009
ME0907 Drawing
ME0808 Hall Sensor Connector
ME0808 Hall Sensor Connector
This is the mating connector for the Hall Cell Assembly used on the axial air gap brushless motors. Comes with all 5 pins fully assembled and crimped, with a 6 inch lead.
$12.88
ME0808
