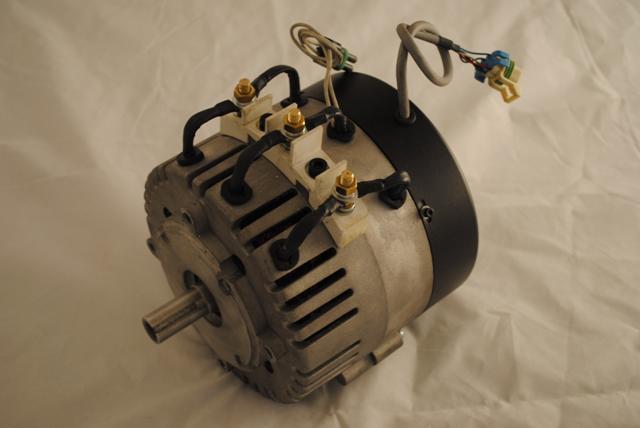

ME1012
Product Description
Output Power of 10 KW Continuous, 24 KW Peak (at 72 volts)
Designed for long life. No brush maintenance. The motor is 92% efficient at voltages between 24 to 72 VDC. Continuous current of 125 amps AC (180 Amps DC into the motor control). This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap and 3 Hall sensors at 120 degrees electrical timing. It has two stators with a rotor in the center.
1) This is a 4 pole motor (8 magnets). 2) The Phase to Phase winding resistance is 0.065 Ohms with 20 turns per phase. 3) The maximum recommended rotor speed is 5000 RPM. 4) Voltages from 0 to 72 VDC input to the control. 5) Torque constant of 0.12 Nm per Amp 6) The Inductance Phase to Phase is 0.05 Milli-Henry. 7) Armature Inertia is 45 Kg Cm Squared. 8) Continuous current of 125 Amps AC (180 Amps DC into the motor control). 9) Peak current of 420 Amps AC for 1 minute (600 Amps DC into the motor control). 10) Weight of 35 pounds. 11) Peak Stall Torque if 60 ft lb. 12) This is an Open Frame, Fan Cooled motor.
Includes temperature sensor.
Designed for long life. No brush maintenance. The motor is 92% efficient at voltages between 24 to 72 VDC. Continuous current of 125 amps AC (180 Amps DC into the motor control). This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap and 3 Hall sensors at 120 degrees electrical timing. It has two stators with a rotor in the center.
1) This is a 4 pole motor (8 magnets). 2) The Phase to Phase winding resistance is 0.065 Ohms with 20 turns per phase. 3) The maximum recommended rotor speed is 5000 RPM. 4) Voltages from 0 to 72 VDC input to the control. 5) Torque constant of 0.12 Nm per Amp 6) The Inductance Phase to Phase is 0.05 Milli-Henry. 7) Armature Inertia is 45 Kg Cm Squared. 8) Continuous current of 125 Amps AC (180 Amps DC into the motor control). 9) Peak current of 420 Amps AC for 1 minute (600 Amps DC into the motor control). 10) Weight of 35 pounds. 11) Peak Stall Torque if 60 ft lb. 12) This is an Open Frame, Fan Cooled motor.
Includes temperature sensor.
