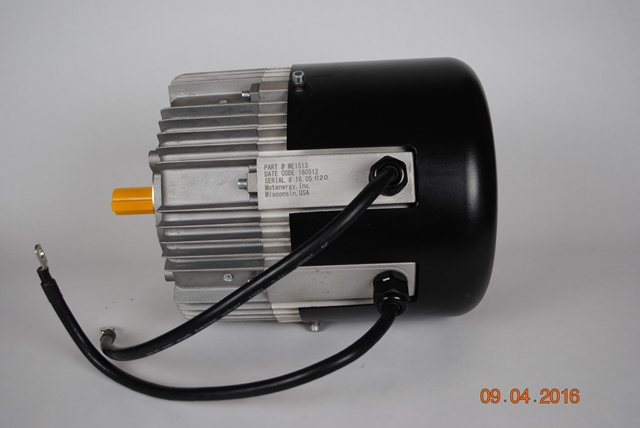

ME1513 Brush-Type DC Motor
Product Description
The ME1513 is a Brush-Type, Permanent Magnet DC motor with very high efficiency of 90% over a very broad range. Capable of 8.4 KW continuous (at 72 VDC). For voltages from 12 to 72 VDC input and 130 amps continuous (400 amps for 30 seconds ). Designed for battery operated equipment. For more information, see the Drawing below. Motor weight of 52 pounds. This is a Totally Enclosed, Fan Cooled motor rated as IP65. Designed for outdoor Winch or similar applications.
