ME1305 PMAC Motor
Product Description

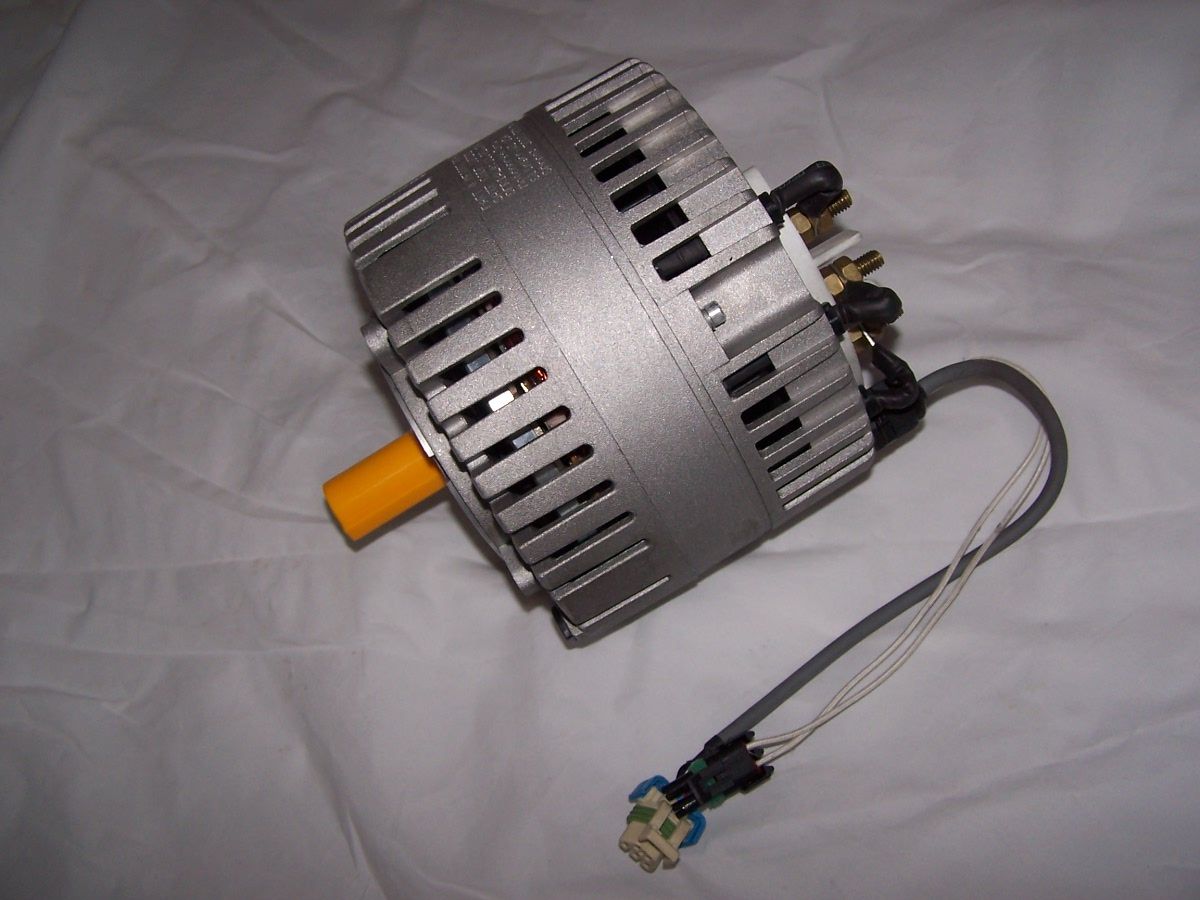

The ME1305 is an Axial Air Gap, Permanent Magnet Synchronous Motor. Rated to be run with battery pack voltage from 24 to 72 VDC. Maximum continuous current rating of 125 amps, peak of 300 amps for 2 minutes. It is an Open Frame, Fan Cooled Motor.
The motor has three hall cells set at 120 electrical degrees for the rotor position feedback. There is an internal Temperature Sensor in the motor windings. Motor weight of 24 pounds.
Note: This motor is special, for it has "inverted" hall sensor outputs (low when they are typically high). Works well with the Sevcon Gen4 Control products since the Sevcon has an option to Invert the Hall Sensor Inputs.
The motor has three hall cells set at 120 electrical degrees for the rotor position feedback. There is an internal Temperature Sensor in the motor windings. Motor weight of 24 pounds.
Note: This motor is special, for it has "inverted" hall sensor outputs (low when they are typically high). Works well with the Sevcon Gen4 Control products since the Sevcon has an option to Invert the Hall Sensor Inputs.
