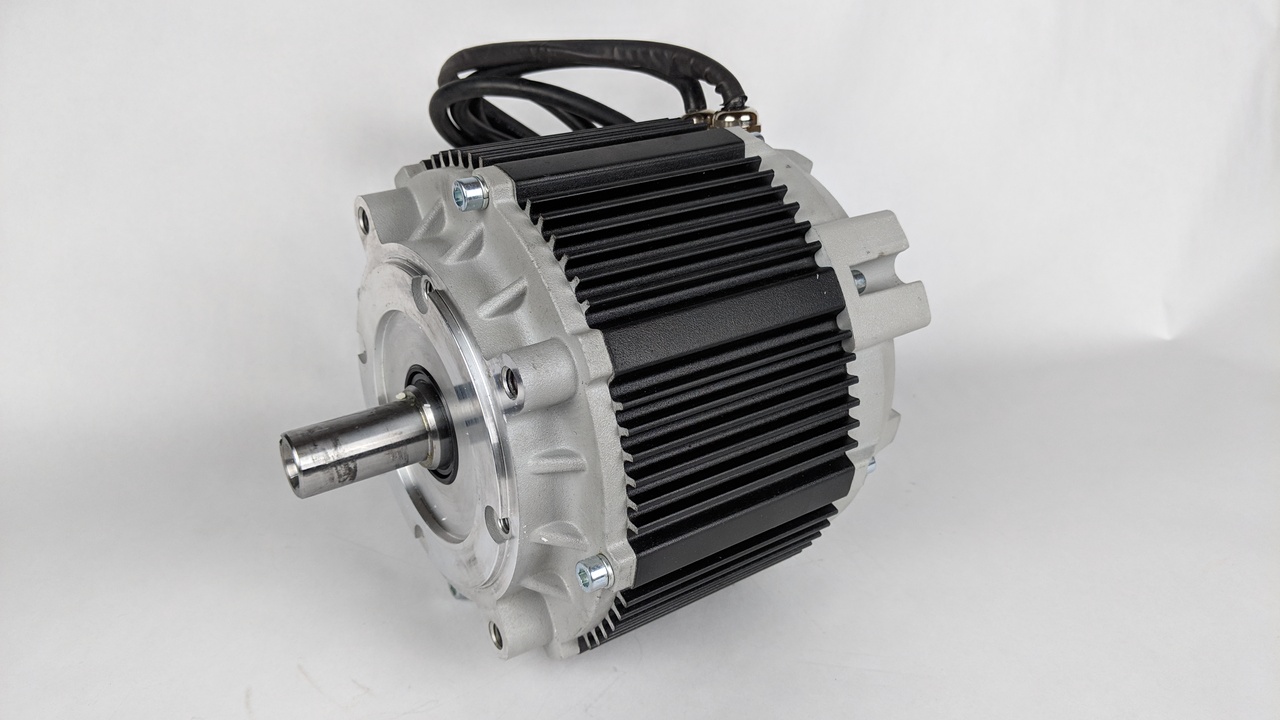

ME1716 PMSM Motor
Product Description
The motor is 92% efficient with battery pack voltages between 24 to 60 VDC. Continuous current of 100 amps at 48 VDC. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor.
Inductance at 1000Hz): 39~43.5 Micro Henry, Maximum Rotor Speed mechanical limit is 6000 rpm, Winding Resistance 4.9 milli-Ohm Phase to Phase, Sensor Type: Sine-Cosine, once per revolution, Weight: 11 kg, Number of poles: 10, or 5 pole pairs, IP65 rated Case, Maximum Current: 300 amps for 2 minutes, Continuous Current: 100 amp, Temperature Sensor in Windings is KTY84-130 Sensor, Magnet N38UH, 180C, Bearings: Front is 6206, rear is 6203, NSK brand, Rotor Inertia: 0.00224 kg.m^2.
