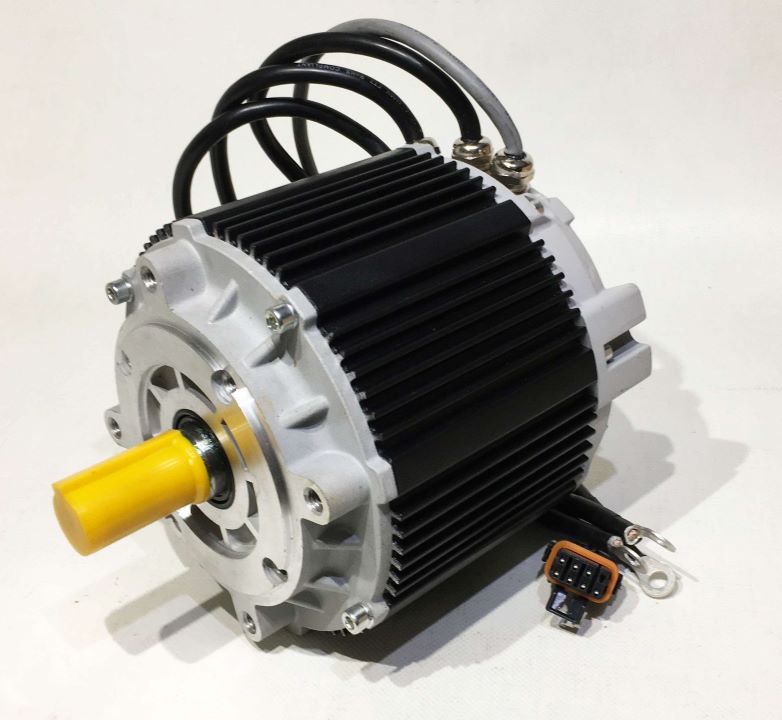

ME1719 PMSM Motor
Product Description
The motor is 92% efficient with battery pack voltages between 24 to 60 VDC. Continuous current of 100 amps at 48 VDC. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor.
Inductance at1000Hz): 39~43.5 micro Henry, Winding Resistance is 5.06~5.28 milli-Ohm Phase to Phase, Sensor Type: Hall Sensor +5 VDC, Weight: 13.8kgs, Number of poles: 10, or 5 pole pairs, IP65 rated Case, Maximum Current: 300 amps for 2 minutes, Continuous Current: 100 amps, Designed for 6kw, S1 duty, 4000 rpm, 14.3 Nm torque, with a 60 VDC battery supply to the control, Temperature Sensor in Windings is KTY84-130 Sensor. Magnet N38UH, 180C. Maximum winding temperature should be 170 C, Bearings: Front is 6206, rear is 6203, NSK brand, Maximum Rotor Speed mechanical limit is 6000 rpm.
