ZYT48-21 56 FRAME 180VDC 1.5HP 1750RPM TEFC

ZYT48-21 56 FRAME 180VDC 1.5HP 1750RPM TEFC
Item# ZYT48-21
$265.00

Product Description

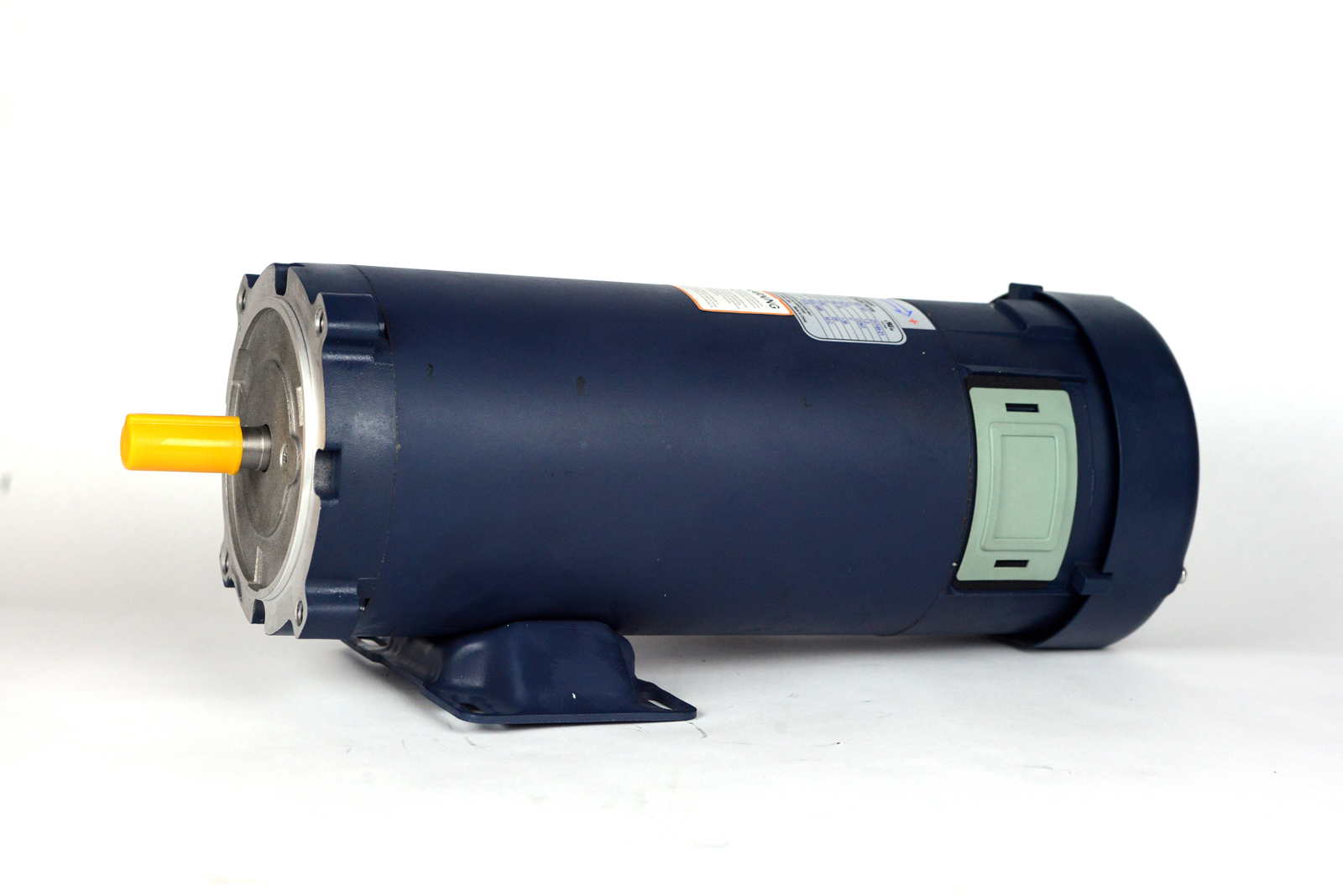

Brush-type, 56-frame DC motor rated at 180 VDC, 1.5 HP and 1750 RPM. Continuous rated current of 7.6 amps and 54 Lb-In of torque. Shaft diameter of 5/8 inch with a 3/16 inch keyway. Totally Enclosed Fan Cooled (TEFC). Class F insulation system and 56C-face and foot mounts. UL Listed, File E477489. Similar to Leeson 108092.
