ZYT48-06 56 FRAME 48VDC 1.5HP 1800RPM TEFC

ZYT48-06 56 FRAME 48VDC 1.5HP 1800RPM TEFC
Item# ZYT48-06
$234.00

Product Description

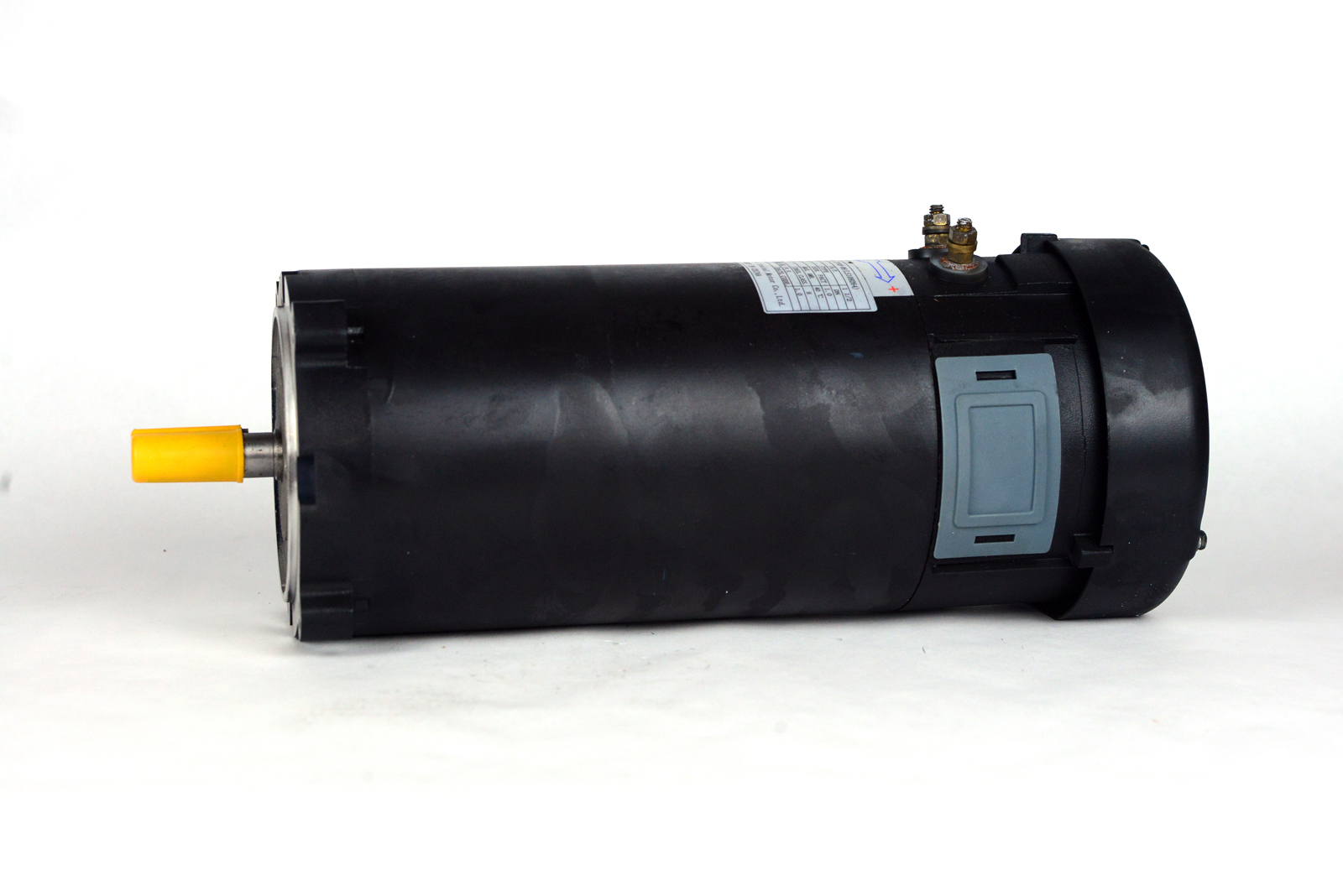

Brush-type, 56-frame DC motor rated at 48 VDC, 1.5 HP and 1800 RPM. Continuous rated current of 27 amps and 52.5 Lb-In of torque. Shaft diameter of 5/8 inch with a 3/16 inch keyway. Totally Enclosed Fan Cooled (TEFC). Class F insulation system and 56C-face and foot mounts. UL Listed, File E477489. Similar to Leeson 109264.
